65 Inch Palm Rejection Industrial Touch Foil Screen Android Touch Screen
1. Product Description
Master Touch capacitive touch foil STM focuses on 7-32 inches, long or short side FPC, which are suitable for industrial touch screen, query machine and other fields. In addition to the general touch screen , the product has strong penetration, good waterproof effect, stability and reliability. In the field of industrial control or consuming application, glass is thicker, waterproof and many other requirements, while the stability requirements are very strong, STM is the best choice.
2. Technical Datasheet
| Part No.: | MST-MCW-TFB-65-STB |
| BOM Code: | 1.11.650.02.0000 |
| Project Code: | M650B |
| Structure: | Film+Micro Copper Wire+Film |
| Copper Wire Diameter: | 15 microns |
| Base Material: | PET Film |
| Controller IC: | STB |
| Driver Type: | Driver-free, plug-n-play |
| Communication Interface: | USB2.0/3.0 |
| Working Voltage: | 5V |
| Standard USB Cable Length: | 1,500mm |
| Thru-Glass Capability: | Max. 10mm |
| Screen Ratio: | 16:9 |
| Foil Size: | 1462.22*840.47mm |
| Active Area: | 1438.97*809.42mm |
| Controller Size: | 176.0*53.0mm |
| FPC direction: | Long side |
| Light Transmittance | ≧89% |
| Lamination Method: | Wet Lamination (OCA) |
| Lamination Substrate: | Glass/Acrylic/PMMA or other non-metallic material |
| Inductive method | Improved projected capacitive technology |
| Touch accuracy | ±1mm |
| Touch Points | 1~40 points (adjustable) |
| Calibration method | Automatic |
| Response time | <10ms |
| Frame scan frequency | 120FPS |
| Lifetime | 9 Years |
| Temperature Range | -15℃ to + 75℃ |
| Working Environment | 0~ 95%RH(Unaffected by condensation) |
| OS compatibility | Windows XP ,Windows 7,Windows 8, Windows10 (32/64) |
| MAC OS X Lion |
| Linux (Kernel version above 3.8) |
| Above Android 4.0 (Kernel version above 3.1) |
| EMC | EN 61000-6-1:2007, EN 61000-6-3:2007+A1:2011 |
| Power Consumption | <0.5W |
| *This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions:(1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. |
|

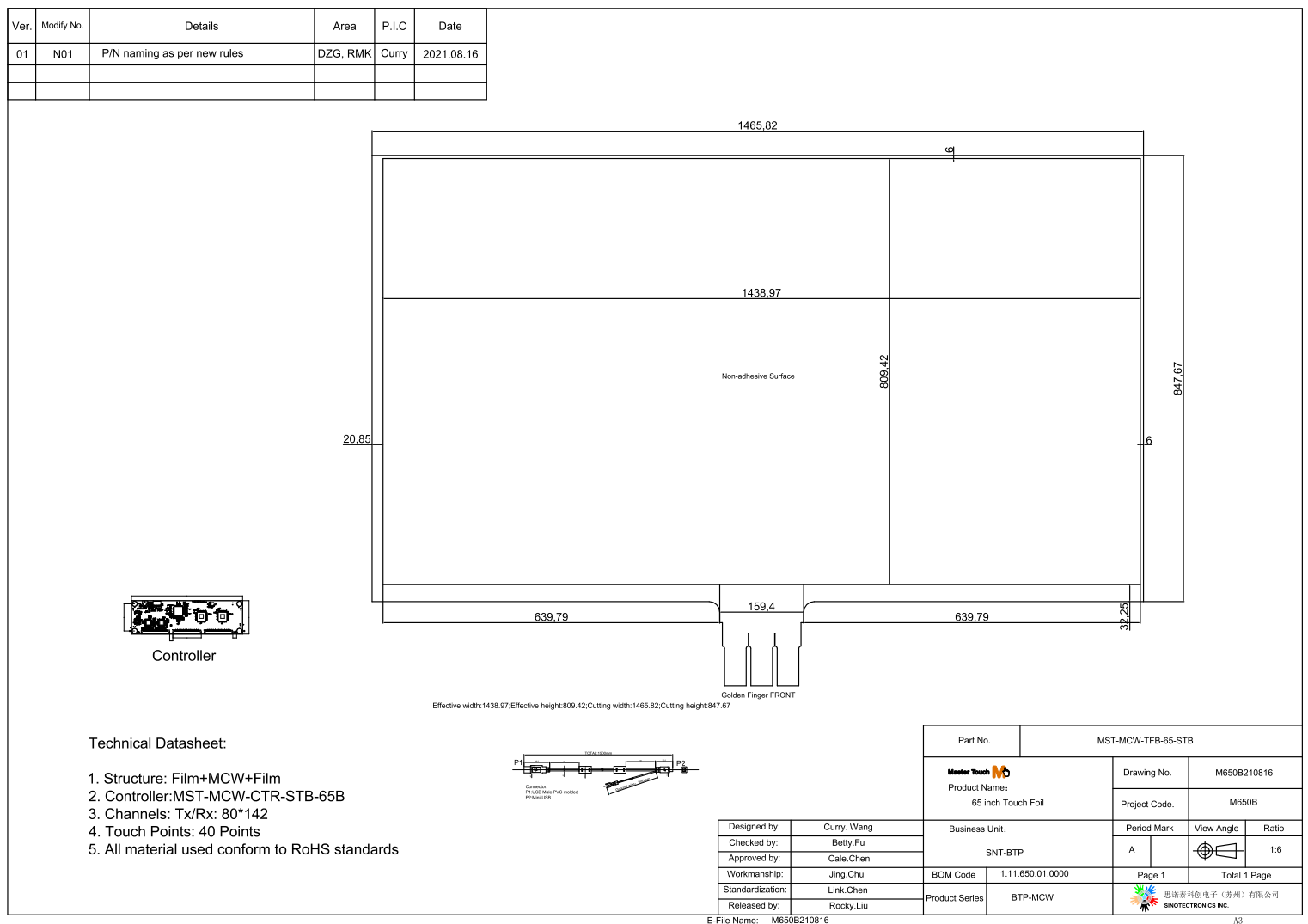

3. Drawing
4. Details
5. Application
Interactive Shopping Window, Outdoor Digital Signage,
Industrial Touch Panel, Interactive Black/White Board, etc.
6. Basic User Guide
① Environment: Comparative Cleanroom
② Lamination Material Choose: Clean and flat
③ Pre-test before Lamination
④ Tools used: Sprayer, Squeezee, etc,
⑤ Direction: Center to side
⑥ Dry and installation:
⑦ Test and calibration
